Y-4010	Type
300psi(20,6bar)	Nominal Pressure
+4 ̊C	Working Temperature
FM	Certificate
FM 1041,UL 262,TS EN 12259-2	Design
EN-1092-2(PN16)/ANSI	Flange Connection Standard
FM 1041, UL 193, TS EN 12259-2	Tests	Download Document

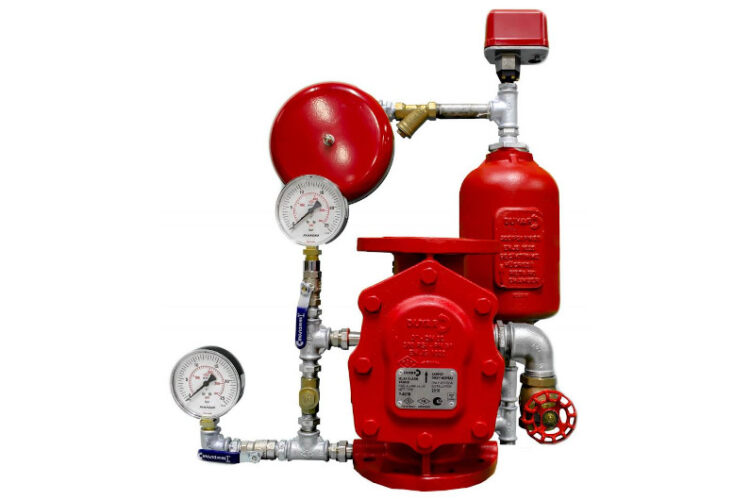

Wet Alarm Valve

Wet Alarm Valve One of the most common types of automatic fire extinguishing systems in the wet system.

The water staying pressurized in the pipes is released over the fire area after the sprinkler is activated due to fire.

The pressurized water system is not only fed continuously but also fills in the retard chamber. After the chamber is filled, the pressure switch on the chamber is actuated. The pressure switch sends the alarm information to the fire warning system or the automation system. After the pressure switch is actuated, the water is delivered to the water-motor gong and releases a mechanical alarm.

The features of this system are high speed, high reliability, and no delay in performance.

The system is designed in such a way that it is possible to connect this system to the fire alarm and electrical alarm system and the mechanical alarm of the system is activated simultaneously with the firefighting operation.
